AcoustiClip Concrete Ceiling System Soundproof Kit

• System thickness 77mm
• Fire one hour

Thermal Resistance R:

• Acoustic plasterboard 12.5 mm = 0.050 m2 K/W
• Acoustic plasterboard 15.0 mm = 0.060 m2 K/W
• Mass-loaded vinyl 0.14 m² K/W
• Acoustic insulation 2.90 W/mK

Thermal Conductivity λR:

• Acoustic plasterboard 0.25 W/mK to BS EN 12524:2000
• Mass-loaded vinyl 0.037 W/mK
• Acoustic insulation 0.034 W/mK

Reaction to Fire

• Acoustic plasterboard 12.5mm & 15mm Euroclass A2-s1, d0
• Mass-loaded vinyl 10kg EN 13501-1 B-s2,d0 (2)
• Acoustic insulation EN13501-1: A1

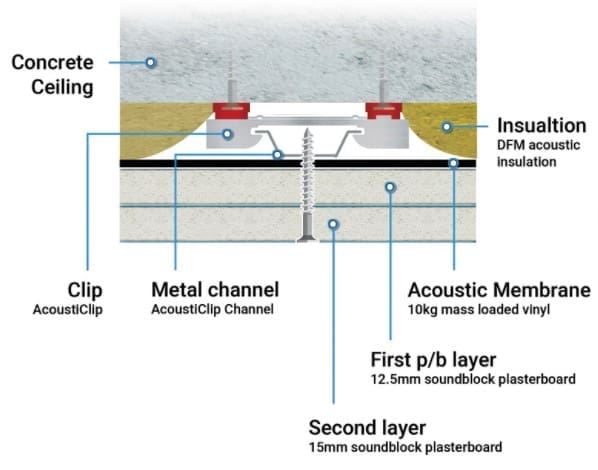

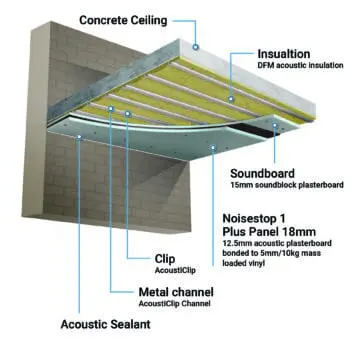

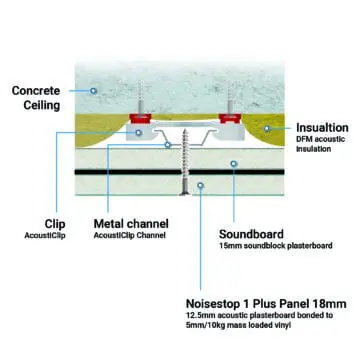

Materials supplied with the AcoustiClip Concrete Ceiling System Soundproof Kit

• Acoustic insulation 25mm/60kg/m3 – High-density sound insulation slabs

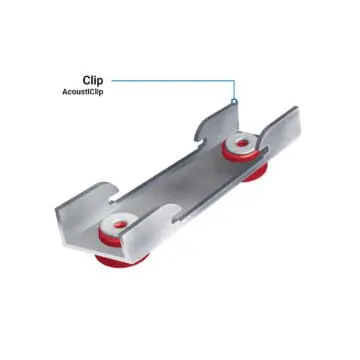

• AcoustiClip – Sound isolation anti-vibration clip
• AcoustiChannel – Metal furring channel 1800mm
• Soundboard 15mm – High-density soundblock paperboard 1200mm x 1200mm (1.44sqm)
• Noisestop 1 Plus Panel 18mm –  12.5mm soundboard laminated with 10kg mass-loaded vinyl 1200mm x 1200mm (1.44sqm)
• Acoustic sealant 310ml

To see the quantities supplied with this system, select the required Total Ceiling Area from the dropdown box at the top of the page.

We recommend ordering areas individually and adding them to the basket rather than adding them to one large area. You can order multiple areas in the same order.

AcoustiClip Concrete Ceiling System Soundproof Kit

Quantity of materials supplied in your order

Airborne Data

Untreated Ceiling Airborne DnT,w

200mm concrete ceiling 59db

Treated Ceiling Airborne DnT,w

AcoustiClip Concrete Ceiling System 72dB

Improvement DnT,w

Noise reduction with treatment 13dB

Impact Data

Untreated Ceiling Impact LnT,w

200mm concrete ceiling 76dB

Treated Ceiling Impact LnT,w

AcoustiClip Timber Ceiling System 48dB

Improvement LnT,w

Noise reduction with treatment 28dB

Note: Every 10 decibels(dB) reduction in noise level is roughly perceived as a halving of the perceived loudness. So, for instance, if you have a sound that measures 70dB and it decreases to 60dB, it would sound about half as loud to the human ear. Decibels Explained.

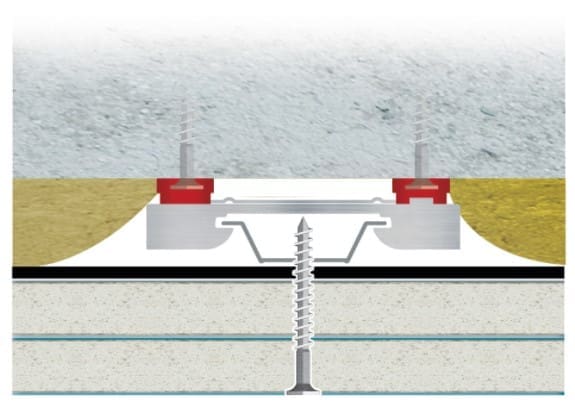

• Fix the AcoustiClip by screwing them directly into the concrete ceiling. Alternatively, fix timber battens to the ceiling and screw the AcoustiClip into the timber batten. See the diagram below for clip and channel spacing.
• An AcoustiClip should be installed at the end of each row.
• The AcoustiChannel is inserted into the clip by pushing it into the AcoustiClip.
• The AcoustiChannels are joined, overlapping them 100mm.
• Lay the acoustic insulation between the AcoustiChannel. Adhere the insulation using a strong spray adhesive between the channels. Alternatively, slide the insulation over the back of the first layer of boarding.
• Once the AcoustiChannel is in place, you can attach the soundboards. Screw the boards into the AcoustiChannel using self-drilling drywall screws. We recommend using a minimum of 16 fixings per board. Ensure the screw punctures the AcoustiChannel by a minimum of 10mm.
• Affix the 15mm soundboard first and then the Noisestop 1 Plus Panel using 25mm and 50mm drywall screrws, sandwiching the acoustic membrane between the soundboards on the back of the Noisestop 1 Plus Panel.
• Once the boards have been fitted, the system can be finished as you would finish standard plasterboard. The boards are supplied with tapered edges, which allows for dry-lining or plastering.

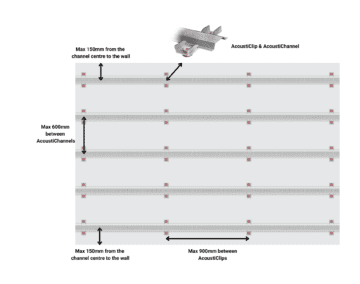

Spacing the AcoustiClip & AcoustiChannel

• Maximum 600mm centers between the AcoustiChannel
• Maximum 900mm centres between AcoustiClips along the AcoustiChannel
• Maximum 150mm from the centre of the AcoustiChannel and the wall
• Ensure the end of the AcoustiChannel does not contact the wall
